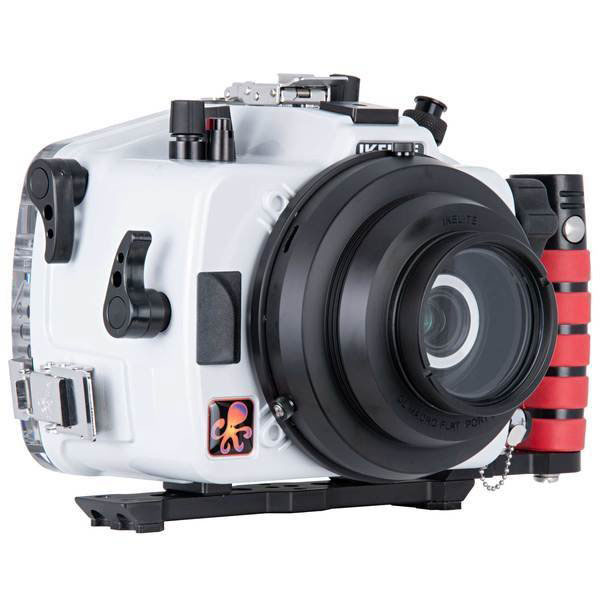

Ikelite 71762 200DL Housing for Canon EOS RP Mirrorless Digital Camera
Product Details
A full-featured and durable waterproof housing for Canon EOS RP full-frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
This housing requires the addition of a compatible Ikelite DL Lens Port for waterproof operation. Lens Port not included.
View the DL Port Chart for Canon RF Mount…
Canon EOS RP Mirrorless Camera
Canon’s full-frame mirrorless lineup expanded with this compact and more affordable brother to the EOS R. At only less than 440g / body only), Canon markets it as the lightest and smallest Canon EOS full-frame camera to date. Yet it packs a 26-megapixel CMOS sensor and is capable of 4K/24p video capture. Its Dual Pixel AF system boasts quick autofocus and good low light performance.
The EOS RP features a high-precision 0.39-inch OLED EVF (electronic viewfinder) with approximately 2.36 million dots and a 22mm eyepoint. The viewfinder is super bright and sharp with minimal distortion even towards the edges. The EVF can be used for both image capture and review.
In addition to the series of new RF mount lenses to be released progressively, Canon shooters can also use their favourite EF mount lenses thanks to the new EF-EOS R Mount Adapter.
Lens Ports
This housing features Ikelite’s robust Dry Lock (DL) port system. “Dry Lock” refers to the placement of the O-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease.
Most popular zoom lenses and select lens focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. A large, soft-touch knob on the side of the housing makes fine-tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. Zoom gears are sold separately.
View the DL Port Chart for Canon RF-Mount…
Confidence
The unique rear seal design prevents accidental twisting or stretching of the O-ring for simple and confident assembly. Ikelite have eliminated the need for an O-ring groove or channel which can trap sand, dirt, or debris. Three double-passivated stainless-steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the O-ring form a solid, watertight seal as it closes.
Vacuum Testing
A vacuum valve is installed standard on the side of the housing. The vacuum valve is designed to be low profile to avoid interference with controls. The optional Ikelite Vacuum Pump with Gauge # 47011 allows you to draw a vacuum on the housing to check for leaks prior to entering the water.
Drawing a vacuum on the system also provides extra security at the surface of the water, especially important when using the housing in rough surf.
M16 Accessory Port
The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads.
TTL Exposure
This housing supports your choice of shooting manual strobes or adding Ikelite TTL electronics depending on your application. The included manual hotshoe with Ikelite ICS-5 bulkhead supports manual strobe exposure with a wide variety of strobes including Ikelite, SEA&SEA, INON, and others.
You can enjoy the fastest and most accurate TTL exposure on the market by adding the DL5 DS Link Canon TTL Converter and CT1 TTL Hotshoe Kit # 46075 and a compatible Ikelite DS strobe. The CT2K supports rear curtain synchronization and exposure compensation can be added or subtracted in the camera.
Reliable locking connectors between the hotshoe and bulkhead make it easy to install the CT1 TTL Hotshoe or carry backup parts when travelling to remote locations.
Ergonomics
Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. Large, curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF/MF button). This combination allows you to shoot with or without back button focus, an advanced technique that is useful for tack sharp focus of super macro and fast-moving subjects. Each lever can be extended using the optional Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.
The rotating controls are all operated intuitively via premium soft-touch knobs. An oversized, lobed knob puts the zoom/focus knob at your fingertips while your left-hand stays on the handle. Stainless steel, direct-drive rotating controls are virtually fail-safe and user-serviceable and adjustable in a pinch.
All rear camera buttons are accessible by smooth action, hard-anodized aluminium push buttons for reliable performance and easy maintenance. These controls are clearly labelled by laser engraving on the back of the housing that never fades or falls off.
Set-Up
The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.
Viewfinders
The included Super-Eye Viewfinder provides an enhanced view of the camera’s optical viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optional Straight Magnified Viewfinder (Type 1) # 6890.1 or 45° Magnified Viewfinder (Type 3) # 6891.3.
The angle of a 45º viewfinder is more ergonomic when shooting underwater plus it provides a larger and brighter view than the standard Super-Eye. Optional magnifying viewfinders make a significant difference in both framing and image review.
Handling and Travel
The housing, tray, and handles have been optimized to reduce weight while maintaining strength and durability. The Right-Hand Quick Release Handle # 4077.02 (sold separately) can be added or removed depending on your needs. The precision-machined aluminium base features 1/4-20 tripod mounting sockets and additional mounting locations for future accessories. The base and handle can be quickly removed when breaking down your system for travel.
A 1/4-20 threaded mounting point is located front and centre on the housing above the lens port mount. This mount can be used to attach lightweight accessories like a focus light or GoPro camera.
If you’re shooting with two strobes or lighting arms, then an Aluminium Top Handle # 4080.08 can be added to carry to and from the dive site. The rigid aluminium version provides additional mounting points for lighting and accessories.
Adding a dedicated focus light to your top mount or strobe arm is highly recommended for more accurate autofocus in low light settings.
Durability and Corrosion-Free Performance
Ikelite’s white ABS-PC blend housing provides strength and corrosion-free performance year with minimal maintenance. ABS-PC is lighter than aluminium for convenience during travel and less drag underwater. The specially formulated colour deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light colour provides superior contrast for an enhanced view of the camera, LCD screen, and O-ring seal.
Made in the USA
Ikelite products are designed, built and tested in the USA. Ikelite uses locally sourced, top-grade materials. Ikelite housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 60m (200 feet). Ikelite back their products with over 50 years of experience and the best reputation for service within the dive industry.
Camera Compatibility
This housing is only compatible with Canon EOS RP cameras as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this particular housing.
Ikelite DS Strobe Compatibility
Any Ikelite DS strobe may be used in manual exposure modes by attaching one or two with a compatible electrical sync cord. Current model DS strobes may be used in TTL exposure mode by adding the optional CT2K Canon TTL Kit # 46072 and an electrical sync cord.
Non-Ikelite Strobe Compatibility
SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off a hard-wired strobe.
Ikelite Non-Digital Strobe Compatibility
Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.
Fibre Optic Compatibility
Fibre optic only strobes are not compatible with this installation. An external strobe must be connected by an electrical sync cord.
Remote Triggering Compatibility
Strobes with remote slave capabilities may be triggered off a flash attached to the housing by an electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405 or the Water Wizard system (manufactured and sold by Aquatica).
Specifications
- 60m (200′) depth rating
- Compatible with DL system lens ports
- Controls are provided for all important camera controls;
- Controls are not provided for touchscreen, Multi-function lock button or Dioptre adjustment knob
- 1/4-20 thread base mounts with 3.5″ spacing
- Slightly positive buoyancy in freshwater
- Actual buoyancy varies depending on the choice of lens and port
- 2.13 kg (4.7 lb)
- 220 x 175 x 165 mm (8.75 x 6.875 x 6.5″)
- Vacuum valve included (pump sold separately)
- Included Ikelite ICS-5 bulkhead connector with manual hotshoe for the reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
- ABS-PC construction is fundamentally corrosion-resistant
- Made in the USA; Individually inspected for fit and water pressure tested to depth
- 2 year limited warranty
In the Box
- Housing
- Rear O-ring # 0132.59
- Front O-ring # 0132.45
- Zoom Gear Retainer # 75900
- Port Hole Cover # 0200.92
- Waterproof Bulkhead Cap # 9104.7
- Base with Left-Hand Quick Release Handle # 4077.67
- Tool for Zoom Gear Retainer # 0945.06
- .050″ Hex Key # 0945.11
- 1/16″ Hex Key # 0945.16
- Silicone Lubricant # 5020
Optional Accessories
- Spare Rear O-Ring # 0132.59. Carry a backup in case the original seal becomes damaged
- Spare Front O-Ring # 0132.45. Carry a backup in case the original seal becomes damaged.
- Vacuum Pump with Gauge # 47011. Pressurize the housing to check for leaks prior to entering the water.
- Right-Hand Quick Release Handle # 4077.02. Makes a double tray for easier handling and a second attachment point for strobes or lights.
- Trigger Extension # 4077.95. Recommended if using the Right-Hand Quick Release Handle. Brings shutter or AF-ON lever out to handle for more comfortable use (requires 2 to extend both controls).
- DL5 DS Link Canon TTL Converter and CT1 TTL Hotshoe Kit # 46075  for Fast, Accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.
- 45º Magnified Viewfinder (Type 3) # # 6891.3 Brighter, larger, and more ergonomic positioning when shooting underwater. Rotates for landscape or portrait shots.
Adding an external strobe or video light enhances your photos’ colour and sharpness underwater. If you will be shooting below 13m (45 ft) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source.
