Ikelite 6146.09 Underwater Housing for Canon PowerShot G7 X Mark III
Product Details
The Canon PowerShot G7 X Mark III is a great choice for underwater use. The bright 24-100mm zoom lens is ideal for use with external wide-angle lenses. A large 1″-type CMOS sensor, 4K UHD video resolution, manual exposure modes, and RAW image capture are key advantages when shooting underwater.

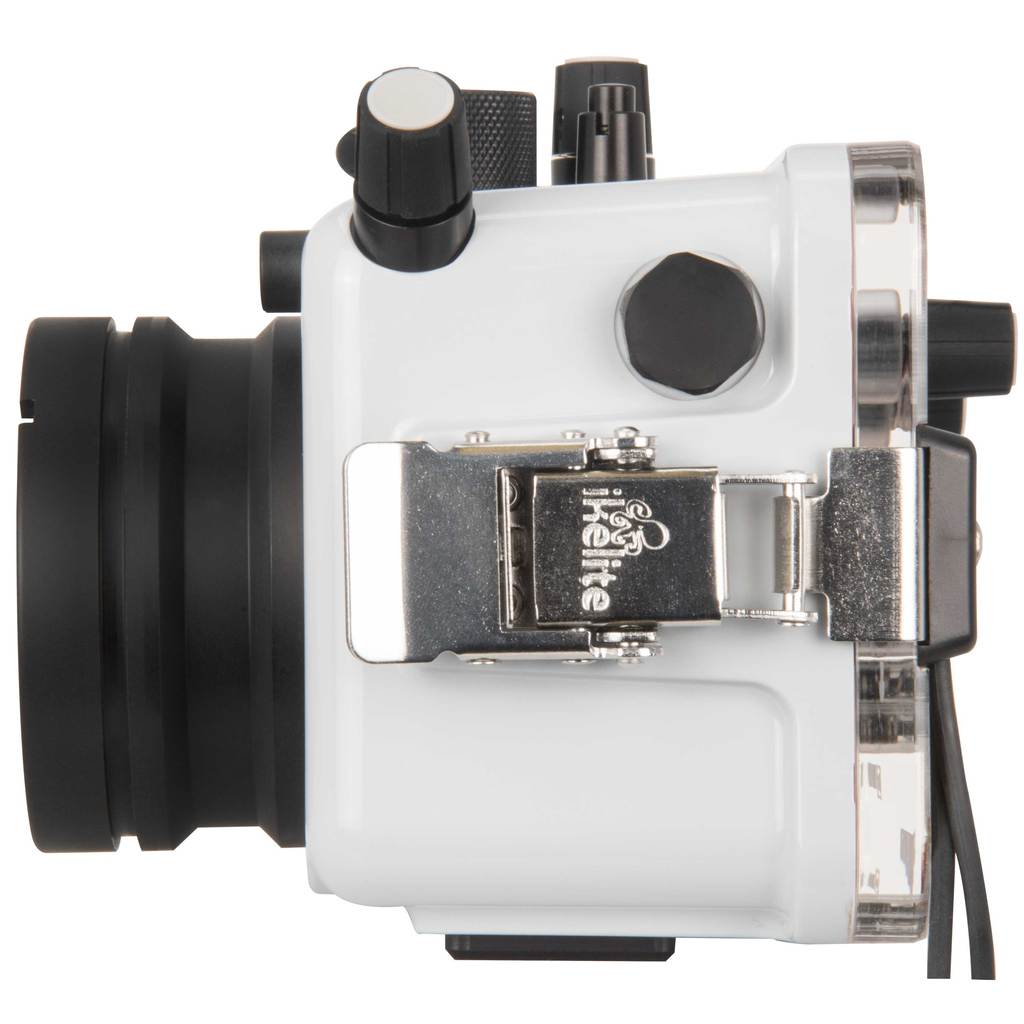

This housing is designed to use the full capabilities of the camera up to depths of 60 meters (200 feet). A perfectly clear back provides a view of the camera and O-ring seal. The back is removable, not hinged, for extra durability and easier camera access. It attaches quickly and easily with two heavy-duty stainless-steel locking latches.
All important camera controls are accessed via fully serviceable controls with premium soft-touch control knobs. Ikelite housings are manufactured in the USA and come with unparalleled access to support, photo advice, and service.
Construction
Ikelite’s ABS-PC blend housing provides strength and corrosion-free performance year after year with minimal maintenance. The specially formulated colour deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light colour provides superior contrast for an enhanced view of the camera, LCD screen, and O-ring seal.
Ikelite products are designed, built and tested in the USA. They use locally sourced, top-grade materials. Their housings are built by hand and individually tested for fit, function and waterproof integrity. Ikelite backs its products with over 50 years of experience and service within the dive industry.
Ergonomics
Drop-in camera loading makes this housing a breeze to set up and shoot. Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. A large, curved control lever puts the shutter control right where you need it. The shutter lever can be extended using the optional Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.
The rotating controls are all operated intuitively via premium soft-touch knobs. Stainless steel, direct-drive rotating controls are virtually fail-safe and user-serviceable and adjustable in a pinch.
All rear camera buttons are accessible by smooth action, hard-anodized aluminium push buttons for reliable performance and easy maintenance. These controls are clearly labelled by laser engraving on the back of the housing that never fades or falls off.
The camera’s large LCD screen can be seen clearly through the back of the housing.
Flash
Due to the position of the camera’s flash in relation to its lens, the built-in flash is not suitable to illuminate photos underwater. For the best colour and clarity, we recommend adding a filter, strobe, or constant-on light.
Two ports are provided for the connection of up to two Ikelite, AOI, SEA&SEA, or Olympus-type fibre optic cords. Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.3 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.
Tray with Handle(s)
The optional Action Tray II with Left Hand Quick Release Handle # 2605.04 and Action Tray II Extension with Right Handle # 2605.05 provide a balanced grip and are the perfect platform for adding lighting accessories.
The Action Tray mounts to the bottom of the housing with two 1/4-20 threaded screws for secure and rotation-free use. Ikelite’s uniquely curved grips are rubberized for a comfortable grip and provide a quick-release mechanism for adding and removing light arms.
Zoom, super macro, and semi-wide angle
The standard 3″ diameter optical glass port accommodates the camera’s full 24-100mm zoom range underwater.
67mm threaded macro wet lenses attach directly to the front of the housing’s lens port for super macro photography. Compatible wet lenses include but are not limited to the AOI, Aquatica, INON UCL-165, Subsee Magnifier, Saga close up lenses, Nauticam CMC-1, and others.
The optional WD-3 Wide Angle Dome # 6430.3 provides a wider angle of view underwater without the edge distortion, vignetting, or weight typically associated with an external wide-angle wet lens. The WD-3 is a 0.75x magnification factor and simply slides on and off the housing’s lens port.
The W-30 Wide Angle Lens, INON UWL-H100 Type 1 # 64310 and other 67mm threaded wide-angle lenses, provide a wider maximum angle of view. Because these are separated from the camera’s lens by glass, air, and water, vignetting (dark clipping of the edges of the image) and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.
3.0″ diameter colour filters press directly onto the front of the standard lens port. Ikelite offer colour filters for Tropical Blue Water # 6441.41, Green Water # 6441.81, and a Yellow Barrier Filter # 6441.11 for fluorescence photography.
Optional 6″ dry dome
The DC4 6″ Dome Port # 6404 offers the best of everything: wide-angle, macro, and over-under all on one dive. This special dome port replaces the housing’s standard port and provides a sharp 24mm wide-angle and is perfect for split shots (half-in, half-out of the water). Approximately 3/4 of the camera’s zoom range is usable behind the dome and macro images can be captured with the dome installed.
We recommend adding the Anti-Reflection Set of Foam # 6407 to reduce reflections when using the DC4 Dome Port.
Sealing and Vacuum Testing
There is no greater assurance than being able to see your camera and O-ring seal through the back of the housing. Ikelite’s signature open-groove design suspends the rear O-ring in a natural position that is easier to maintain and more reliable than forcing the O-ring into a channel. Once the housing is closed you can see the O-ring form a solid, waterproof seal.
A spare 1/2-20 threaded accessory port is provided on the side of the housing for easy installation of the optional Vacuum Kit # 47012. A hand pump with a gauge allows you to draw a vacuum on the housing to simulate water pressure and check for leaks prior to entering the water.
Every unit is water pressure tested to 60m (200 feet) before it leaves Ikelite’s facility in Indianapolis.
Compatibility
This housing is only compatible with the Canon PowerShot G7 X Mark III camera as shipped by the manufacturer. Other Canon cameras, including other G7X models, are not usable in this housing due to differences in control placement.
Specifications
- 60m (200 ft) depth rating
- Controls for all camera functions except Flash pop-up button (flash must be extended when installing the camera in the housing)
- Two built-in fibre optic ports
- Slightly negative buoyancy in freshwater
- 1/4-20 threaded tray mounting with 76mm (3″) spacing
- Weighs 1061 g (2.3 lb)
- 175 x 140 x 127 mm (6.9 x 5.5 x 5″)
- 3.0″ diameter glass lens port supports full zoom range 24-100mm
- 2-year limited warranty
